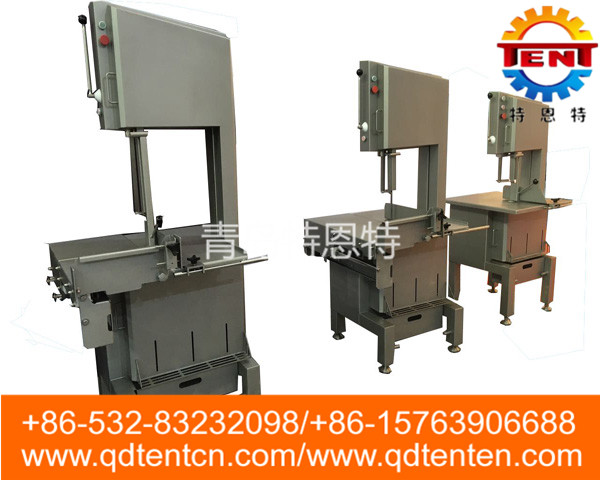

Saw bone machine 1





details



Model: KT460



For fast cutting of fresh and frozen meat



Main features: using the latest technology and stainless steel production; Fixed/moving two types of operating table motor, drive mechanism layout, accurate and reasonable, strong power, smooth operation; The machine operates smoothly with little vibration; When cleaning can be easily removed; The machine is equipped with a safety interlock switch, which ensures that the machine cannot start the blade when the cover is not closed. Equipped with motor brake device to ensure that the saw blade stops rotating in a short time after emergency stop, ensuring the safety of operation of employees; Stainless steel is manufactured to European standard Draft prEN 12268



Technical parameters: voltage: 3 phase, 380V; Saw blade speed: 16m/s at low speed, 31m/s at high speed; Size of saw blade: 3135x20mm; Table size: 560x870mm; Motor power: 1.8kw; Cutting height: 345mm(maximum); Cutting width: 375mm(maximum); Weight of equipment: 220KG



Model: T32



Main features: the latest technology and sturdy stainless steel manufacturing, compact design; Equipped with a full set of motor overload protection and restart the locking, the improved band saw wheel cleaning system, easy to disassemble and clean; Removable feed device ensures operators keep their hands away from the cutter, automatically tighten saw blade function and automatic saw wheel cleaner; Approved test experiments in safety and hygiene.



Technical parameters: voltage: 3 phase, 380V; Power: 2KW; Dimensions :(width x length x height) 777x800x1600 mm; Saw band speed: 25m/s; Length of saw band: 2430x16x0.6 mm; Safety protection: IP55; Product width: minimum/maximum 8-300mm; Weight: 110 kg, gross weight 190 kg
