Head split saw for pig cattle sheep





details



1. The pig head splitter is made by using the hydraulic principle, which can put pig head, cow head and so on into the stainless steel clamp, operate the switch, and split the head in two with a sliding knife.



2. Features:



1. The pig head splitter is a special processing equipment for pig head and cow head, which is designed based on hydraulic principle.

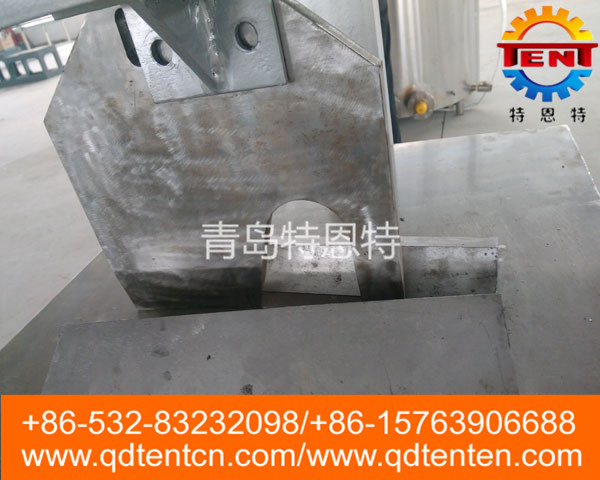

2. The oil cylinder is used to move the tool holder up and down to split the pig brain.



3. Slide of tool rest adopts shaft sleeve type, with small movable clearance, stable operation and long service life of oil cylinder.



4. The platform adopts 20 mm thick plate



5. The vertical column shall be 160mm * 60mm * 6mm



6. The tool holder is positioned with the travel switch, and can be stopped at any position.



7. Hydraulic operation button is adopted to automatically return when stop.



8. Stainless steel guide pillar: 40mm



9. The thickness of fixed plate is 25mm



10. Stainless steel splint 4mm



3. Technical parameters:



The device splits a pig's head in half



Power supply: 380V 50Hz



Power: 3 kw



Production capacity: 300 pieces /h



Dimensions: 700*700*1800mm



Machine weight: 200kg



Iv. Operation instructions:



1. Before use, first open the back cover and add hydraulic oil. The hydraulic oil should be two-thirds of the oil mark.



2. Connect the three-phase 380 volt power area and control switch.



3. Close the power switch, turn the motor, try to step on the foot switch and see if there is pressure. Move the knife freely up and down.



4. Place the lower jaw of the pig's skull on the head, and aim the knife notch at the brain. Cut with the knife to leave the brain position, so as to complete the formation of the pig's brain.
