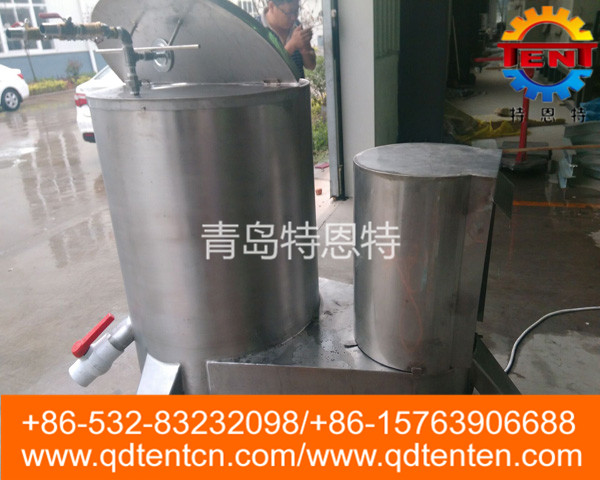

Cattle sheep head and hooves dehair machine





details



1. Main purose and features



1) equipment use: tmj-1 cattle and sheep hooves depilation machine is mainly used for the depilation of cattle and sheep's heads and hooves.



2) equipment features:



A. Mechanical transmission is adopted in the driving part of the equipment. The contact surface between the frame and the head and feet of cattle and sheep is made of stainless steel and frosted, without pollution to the head and feet of cattle and sheep.



B. The inner bottom of the depilator cylinder is stainless steel concave and convex surface. In the process of depilation, the front hoof plays the role of friction and reversal, and friction with the surrounding frosted surface, which improves the depilation efficiency.



C. preheat the cattle and sheep hooves depilating machine before depilating. The temperature of hot water injected into the tube is controlled by the combination temperature control switch of steam and natural water. The speed of preheating and depilation is regulated by frequency conversion speed regulation, low temperature and low speed preheating, high temperature and high speed depilation.



D. In the process of hair removal of the head hoof of cattle and sheep, waste water is continuously discharged and hot water is continuously injected to keep the surface of the head hoof of cattle and sheep at a certain temperature to ensure the ironing rate.



E. simple operation and less vulnerable parts.



F. The upper cover of the cylinder body of the depilator can be opened by mechanical transmission, which is more convenient for cleaning and maintenance after use of the equipment.



Product specifications, models and main parameters



1) model: ytt-800



2) motor power: 7.5kw



3) service voltage: 380V



4) external dimension: 1745x1377x1188mm



5) take off the head of cattle and sheep at a time: 3-6 heads of cattle, 6-9 heads of sheep, 15-20 feet per time



6) requirements: water temperature 60 â„?~ 75 â„?(head, foot hair removal temperature difference)



2. Instructions of operation steps



1) the hooves should be ironed with hot water in other containers at least 5 minutes in advance



2) turn on the power, preheat the machine, open the top cover of the cylinder, put the ox's head and feet into the cylinder, turn on the steam to heat and inject the cold water into the cylinder. The injection of cold water through the temperature control switch is heated to 60-75 â„?/FONT>.



3) the cylinder speed is adjusted by frequency conversion speed regulation for depilation. The cow's hooves are rubbed against the stainless steel concave and convex surface at the bottom, while the friction with the surrounding abrasive surface and the cow's head is rubbed against each other to achieve the effect of depilation.



4) hot water is continuously injected during the depilation process, and the waste water and the removed wool are continuously discharged from the round hole at the bottom.



5) after the depilation, close the steam and water inlet valve. The upper cover is opened by mechanical transmission and the hooves are removed.
