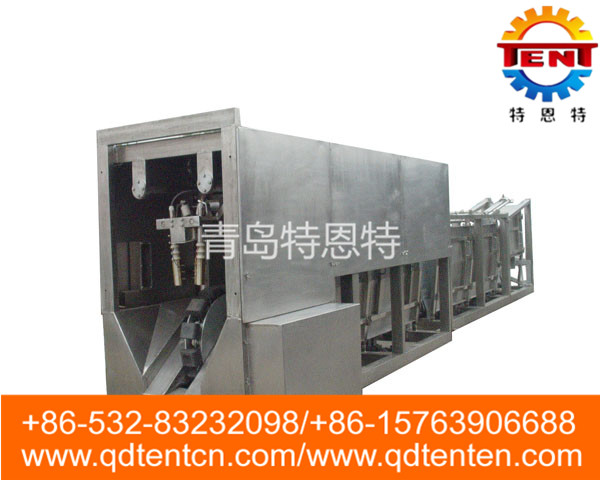

Belly type Pig auto stunning machine





details



This is used for pig automatically stunning.Pig is conveyed by riding the conveyor belt.A baffle on both sides of the conveyor belt.Fully automatic clamping mechanism. Installation of sensors on the frame.A set of water pipes on both sides of the machine

The equipment has the following advantages:Automatic shower can improve the hygienic condition of pigs before slaughter.Because of the saddle type conveying of the pig body, the abdomen is loaded, and the four legs are suspended,so It can avoid the feeling of anxiety and panic caused by whipping and other factors, and improve the quality of the meat.multiple point stunning,so the phenomenon of blood stasis is avoided.

Main technical parameters:

Transformer power:0.5kw

Rated voltage:380VAC

Control voltage:24V

Compressed air: 6 PA

Every time the air is consumed:about 20 liters / times

Stunning input voltage:220V

Stunning output voltage:70-120V adjustable

Stunning current:0.5-1.2A

Stunning time:2-3s
