Bridge type half split saw





details

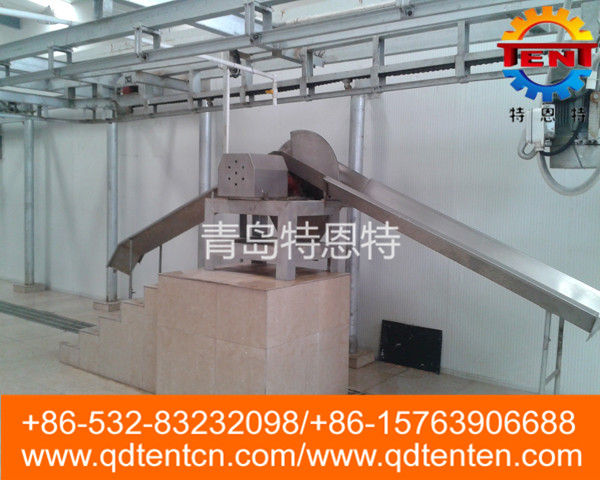

The device is used to split pig carcasses into two slices along the median line of the back.The machine is installed under the accelerator conveyor and used in conjunction with it and operator assisted operation.It is suitable for large and medium slaughterhouses.The machine is used for continuous split half of pig carcass.It has the characteristics of easy operation, low labor intensity, high productivity and half split.

Main technical parameters:

Rated voltage: 380VAC

Control voltage: 24VDC

Motor power: 7.5KW

The diameter of the saw blade: 750mm

Saw blade speed: 1145r/min

Shape size: 4150 x 1150 x 1955mm
